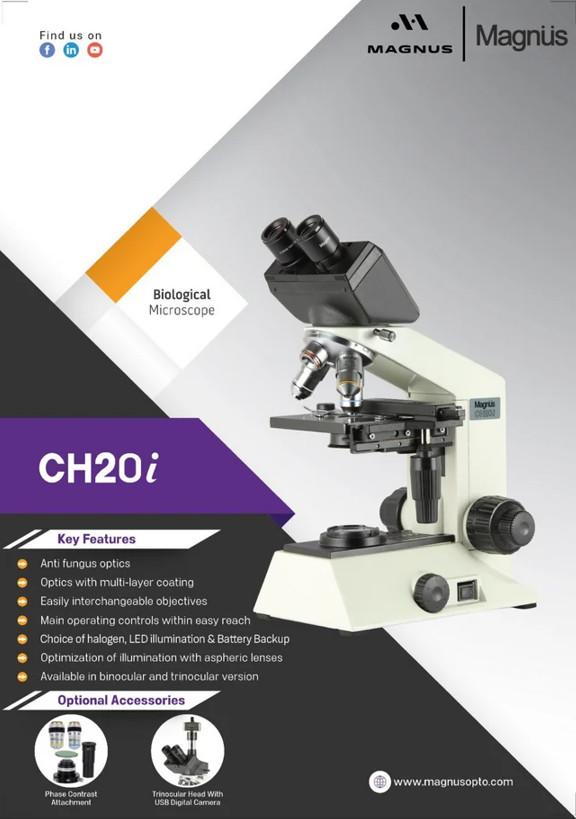

The Magnus CH20i is a Biological microscope designed for educational and routine laboratory use. It is known for its quality optics, ergonomic design, and user-friendly features.
Key Features:
• Head: Binocular sliding head with interpupillary and diopter adjustments
• Nosepiece: Quadruple click-stop revolving mechanism with multiple ball bearings, elastic nosepiece grip-ring
• Eyepiece tube: Anti-mold binocular 45-degree inclined built-in prism type, with diopter adjustments and interpupillary Distance adjustments.
• Eyepiece lens: 10x F.O.V.20mm with rubber eye guards
• Objectives: PLAN ACHROMAT 4x, 10x, 40x and 100x oil Spring loaded.
• Focusing system: Co-axial coarse and fine Focusing knobs mounted on fine ball bearings for extra smooth movements
• Stage: Right hand Rectangular mechanical stage with Co-axial X and Y movements
• Illumination: Options of Halogen / LED / LED with battery backup upto 06-08 hrs, longlife (30,000hrs).
• Condenser: Abbe type NA 1.25 with iris diaphragm
